This lab will use multiple power sources to create a circuit, then use mesh current analysis to measure circuit responses.
In our pre-lab, we determined that the voltage across V1 was 4.34 V and the voltage across V2 was 2.34 V in the theoretical circuit. However, our actual circuit was different because we used a 22k-Ohm resistor instead of a 20k-Ohm resistor. We did calculations for that circuit again after our experiment to see if we had reasonable data.

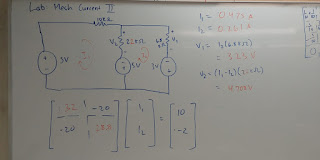

Our experimental data matched the calculations we did for the 22k-Ohm resistor, which are on the whiteboard.
